Plan both cargo and camp modes.

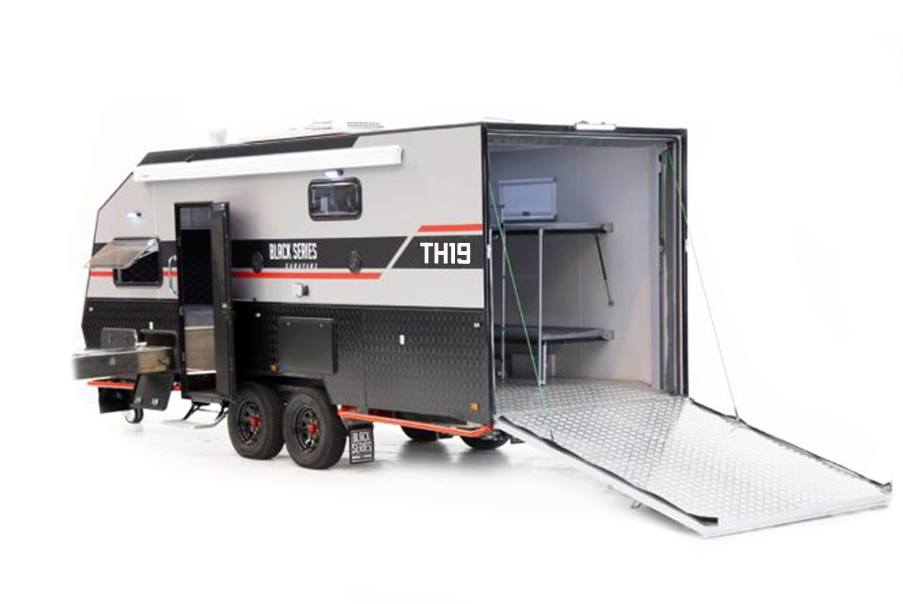

COMPACT OFF-ROAD TOY HAULER
01 / EXTERIOR · 2027 BASE REFERENCE2027 BASE REFERENCE
COMPACT OFF-ROAD TOY HAULER
Carry the machines.
Sleep the crew.
A 22.3 ft toy hauler with garage-ready diamond-plate flooring, a queen bed, four bunks, wet bath and indoor/outdoor cooking for six published sleepers.
BEST STARTING POINT FORActive families and riding crews
The garage and ramp support gear-heavy trips while permanent sleeping zones keep the trailer useful after unloading.
SLEEPINGUp to 6
BATHROOMWet bath
INTERIOR19 ft
COOKINGInside + outside
6Published sleeps
22.3 ftOverall length
6,172 lbDry weight
10,000 lbGVWR
600 WRoof solar
64 galFresh water
2027 Base reference figures from the official guide (pages 3–4). Dry weight excludes cargo, water and travel supplies. Verify the selected unit and purchase build sheet.
01 / WHO IT FITS
Choose it for the way
you actually travel.
Buyers who need a compact toy garage and six published sleeping places.
Published total is six.
Compact shared washroom.
Small for a six-person group.
Payload matters immediately.
Use the selected unit build sheet.
RIDING CREW
A shorter hauler
for gear-first trips.
Use the garage for machines and equipment, then reset the space after unloading at camp.
- Garage-ready floor
- Rear loading access
- Pass-through storage
Think about: Confirm cargo dimensions, tie-down ratings and actual payload before loading.
THE COMPACT GARAGE
Unload first.
Then reset the room.
TH19 trades conventional lounge space for a shorter toy-hauler footprint. Diamond-plate garage flooring handles cargo; sleeping and living arrangements depend on how the gear is loaded.
19 ftInterior length
900 lbPublished tongue
6Published sleeps
02 / LIFE INSIDE
Every zone
earns its space.
Queen bed + 4 bunks. Full fiberglass wet bath.
WHAT MATTERS INSIDE
Main sleeping areaA dedicated place to rest
Bunk-bed layoutSleeping space along the sides
Indoor kitchenMeal preparation and cabinet storage
BathroomShower fittings and toilet
TH19 / TH22 shared interior reference. Layout, finishes and fitted equipment vary by selected build.

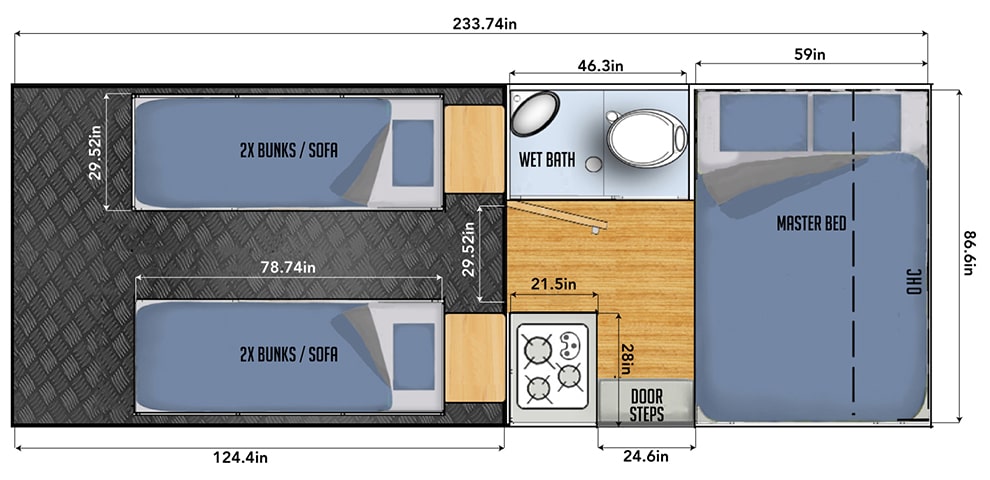

INTERACTIVE FLOOR PLAN
Garage
Cargo + living conversion
Queen bed + 4 bunks. Review the published plan and confirm dimensions on the selected unit.
Cargo + living conversion19 ft interior
Floor plans and finishes can change by production year and package.
TH SERIES / INDOOR KITCHEN
COMFORT SYSTEMS
Live inside.
Cook outside too.
Indoor and slide-out outdoor propane kitchens. The listed fridge/freezer (capacity to be confirmed), 16,000 BTU furnace and 13,500 BTU rooftop air conditioner define the everyday comfort envelope.
2.6cu ft fridge / freezer
2Cooking locations
Premium retractableAwning
13,500BTU air conditioning
03 / 2027 BASE SYSTEMS
Know what supports
your stay.
Capacity helps only when matched to weather, group size, appliance load and water habits.
POWER ARCHITECTURE
600 W solar.
200 Ah / 2 × 100 Ah.
The listed system combines roof solar, onboard batteries and a pure sine inverter. Runtime depends on battery chemistry, sunlight and loads.
01 / COLLECT600 WRoof solar
→02 / STORE200 Ah / 2 × 100 AhListed battery bank
→03 / CONVERT2,000 WPure sine inverter
30 AShore powerConfirm voltageElectrical systemConfirm outletsDevice outlets
BUILT FOR THE ROAD BEYOND
The structure
under the finish.
START WITH THE NUMBERS
Match the vehicle
to the loaded trailer.
Published dry weight6,172 lb
GVWR / maximum loaded rating10,000 lb
Published tongue weight900 lb
04 / COMPLETE SPECIFICATION
Every decision point.
Easy to search.
2027 official PDF reference. Select an edition for its power and equipment package. Dimensions and weights are model-level references; confirm the actual build and VIN before purchase.
Published model specifications are not a certification of a particular Edition or VIN.
01Measurements & weights8 details
External length
22.3 ft
Internal length
19 ft
External width
Pending
External height
Pending
Internal height
Pending
Dry weight
6,172 lb
Tongue weight
900 lb
GVWR
10,000 lb
02Sleeping & interior5 details
Sleeps
6
Sleeping configuration
Pending
Bathroom
Full fiberglass wet bath
Flooring
Pending
Cabinetry
Pending
03Kitchen & comfort7 details
Fridge
Pending
Stove
Pending
Microwave
Pending
Entertainment
Pending
Air conditioning
13,500 BTU air conditioner
Furnace
16,000 BTU furnace
Insulation
R16 insulation
04Power & water14 details
Total solar output
600W (4 × 150W)
Solar panel arrangement
4 × 150W
Battery bank total
200Ah lithium (2 × 100Ah)
Battery arrangement
2 × 100Ah
Battery chemistry
lithium
Inverter
2,000W pure sine wave
Charging system
Solar + 30A shore power
Shore power
30A, NEC-compliant, UL-listed components
Fresh water
64 gal
Filtered / drinking water
16 gal
Grey water
26 gal
Black water
26 gal
Hot water
instant hot water system
Toilet
Pending
05Chassis & exterior12 details
Drawbar / chassis
Pending
Suspension
Pending
Tires
Pending
Brakes
Pending
Hitch
360° articulating off-road hitch (McHitch / DO35 style)
Connector
Pending
Anderson plug
Pending
Body materials
Pending
Windows
Pending
Roof
Pending
Awning
Pending
Recovery hooks
Pending
06Additional equipment2 details
Rangehood
Pending
Lighting
Pending
No matching specifications.
2027 figures use the dated Specifications & Pricing Guide. Undated equipment sheets require confirmation for the selected build.
Open official TH19 PDF ↗COMPACT OFF-ROAD TOY HAULER
Choose the layout
that solves your real trip.
Buyers who need a compact toy garage and six published sleeping places. Match the trailer to the tow vehicle and verify the final build before ordering.
2027 model references; Edition-specific weights remain pending. Confirm the selected build and vehicle label. Official PDF, p. 3 ↗
