HQ12

Blackseries Off-Road 12ft Travel Trailer

Exploration Has No Limits
HQ12
Exploration Has No Limits
HQ12

With the Schweizer Messer appearance, the HQ12 is equipped with outdoor kitchens and wet bath, which can meet the living needs of 4 people. The compact design of the HQ12 is suitable for weekend camping enthusiasts for adventuring.


19 ft
Exterior length
5,080 lbs
Dry Weight
4
Sleeps

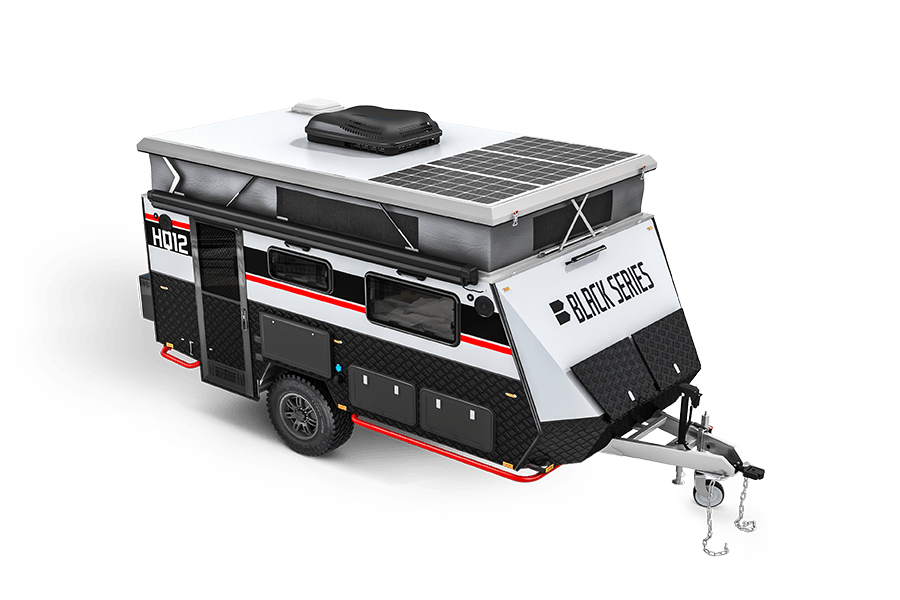

pics of HQ12 - Black Series Campers | Off-Road Travel Trailers, Toy Haulers & Camper Trailers

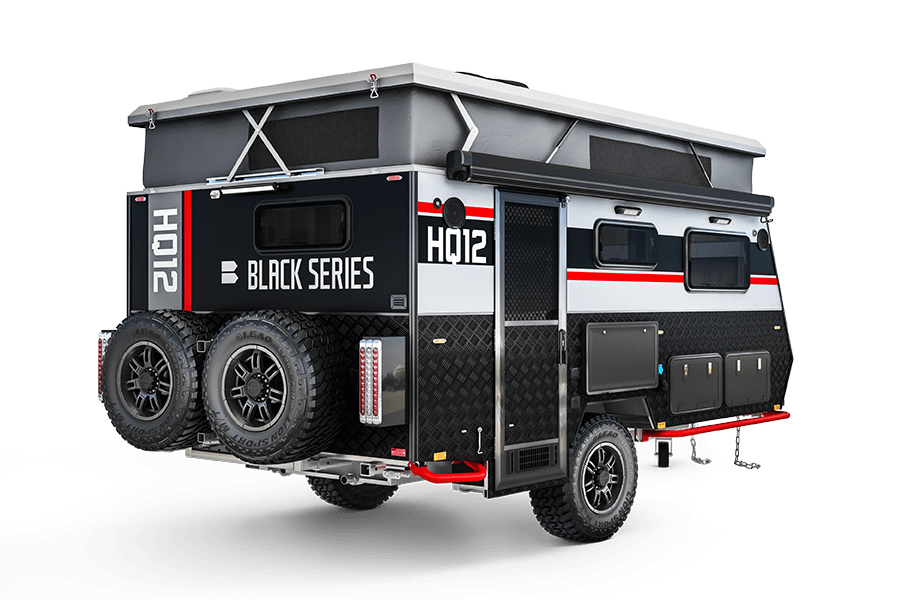

pics of HQ12 - Black Series Campers | Off-Road Travel Trailers, Toy Haulers & Camper Trailers

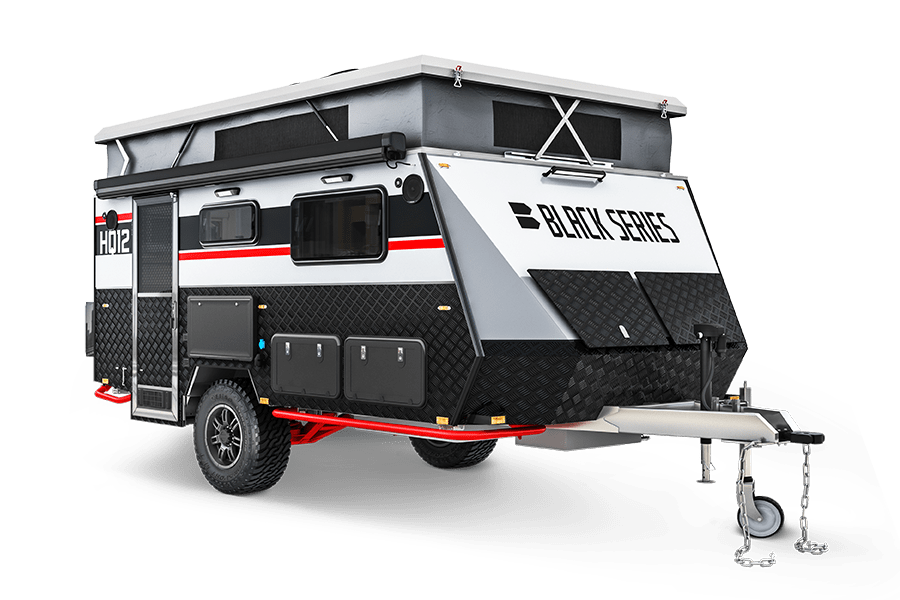

pics of HQ12 - Black Series Campers | Off-Road Travel Trailers, Toy Haulers & Camper Trailers

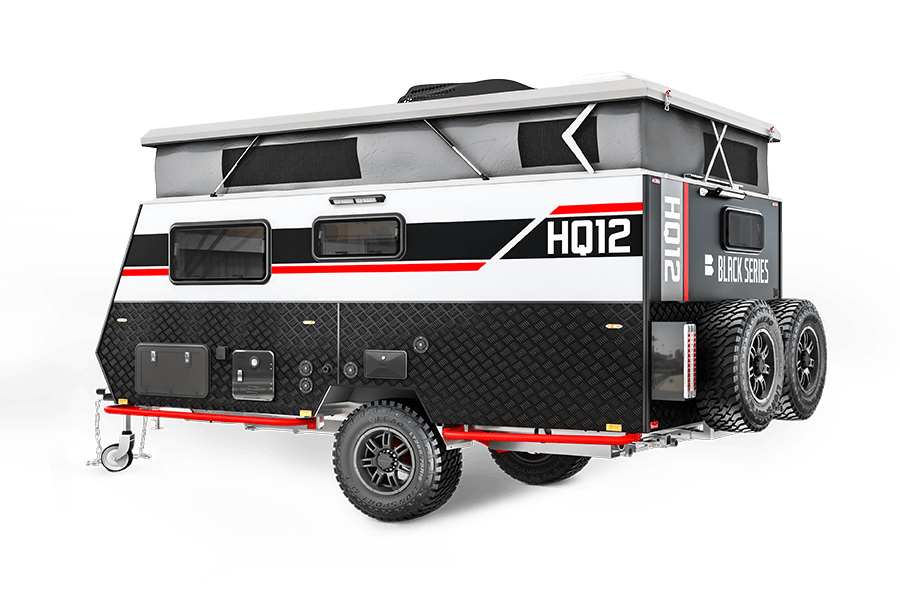

pics of HQ12 - Black Series Campers | Off-Road Travel Trailers, Toy Haulers & Camper Trailers

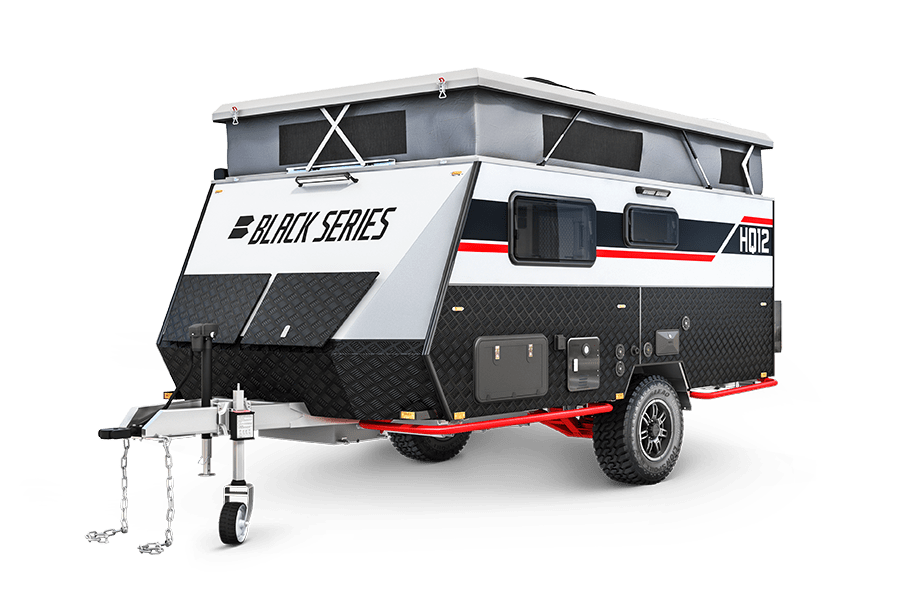

pics of HQ12 - Black Series Campers | Off-Road Travel Trailers, Toy Haulers & Camper Trailers

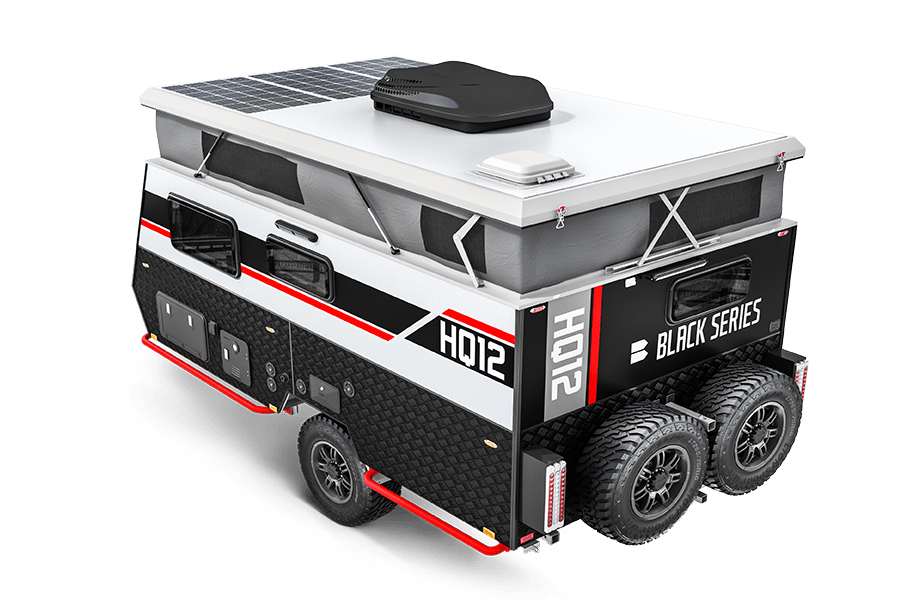

pics of HQ12 - Black Series Campers | Off-Road Travel Trailers, Toy Haulers & Camper Trailers

INTERIOR

• Sleeping Configuration: 1×Queen Bed, bunk bed, and Convertible Lounge
• Wet Bath:
Full Fiberglass shower enclosed with ventilation and Toilet
• Lounge:
Dinette with Premium Faux Leather Seating and Adjustable Table. Convertible to sleeper
• Kitchen:
Propane Stove, Sink, Microwave, and Fridge
• Flooring:
Wood Vinyl
• Cabinetry:

Modern 5-Star Timber Finish Veneer

All cabinetry comes equipped with gas strut supports with push open travel-safe locks and soft close drawers

• Leather:
Premium Leather with a 5-Star Finish
• Screen Door:
Tri-Lock Security Door with locking Fly Screen

EXTERIOR

• Materials:

Aluminum Composite Panels with added Aluminum Diamond Plating for added strength

• Stone Guard/Skid Guard:
Adds Protection for Bottom Edge of Camper
• Insulation:
Spray Foam R16 Insulation on Full Roof and Walls
• Roof:
One Piece Aluminum and Roof Hatch with Shade
• Design:
Easy Two Step Pop-Top
• Pop-Top:

Made of Polymer coated embedded canvas, with mesh screen windows

• Windows:
Eurovision Windows with Fly Screen and Privacy Shades
• Awning:
10ft Electrical Awning
• Storage:

Large Pass-Through Storage

Front Storage for 2× Jerry Cans & 2× Propane Tanks

• Prep-Table:
Lockable Fold Down Outdoor Table
• Outdoor Kitchen:

Stainless Steel Slide Out Sink, Propane Burner Stove and Large Prep-Table

• Shower:

Outdoor Shower


APPLIANCES/
ACCESSORIES

• Fridge:

2.8 cu. ft. Fridge/Freezer

• Stove:
Outdoor and Indoor Propane Stove
• Rangehood:
Slim Twin Fan with Light Range Hood
• Propane:
2× 20lbs Propane Tanks
• Microwave:
6 Gal. Electrical Microwave with Four Operating Features
• Furnace:
16,000 BTU Thermostat Control
• Air Conditioning:
13,500 BTU Rooftop Air Conditioning Unit
• Entertainment System:

CD/FM/IPOD/Bluetooth/USB Radio

2× Interior Speakers

2× Outdoor Marine Grade Speakers

24" SMART TV

• Antenna:
HD TV over the air antenna with built in sure-lock
• Safety:
Fire Extinguisher, Smoke Alarm and Propane/CO Detector





PLUMBING

• Shower:

Outdoor Shower & Interior Full Fiberglass Shower

• Sink:
Large Interior Stainless Steel Sink and Outdoor Stainless Steel Drip Sink
• Toilet:
Porcelain Toilet
• Drinking Water:
16 Gal. Triple Filtered System
• Fresh Water:
64 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
• Grey Water:
26 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
• Black Water:
26 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
• Hot Water:
Instant Water Heater


ELECTRICAL

• Electrical System:

12V/110V Electrical System with 2,000 Watts Black Series Pure Sine Wave Inverter with a custom Black Series Camper, Inc. Control Panel.

• Battery:
2x 100AH
• Solar:
4x Roof Mounted 150 Watt Solar Panels
• Internal Lighting:
LED Reading Lights in Bedroom and Lounge
• External Lighting:
Wide Angle Side mounted LED Flood Lights Front & Rear LED Light Bar
• Plugs:
Internal/External 12V/USB Plugs
• Shore Power:
30Amps Service
• Control Panel:
Breakers, Digital Gages, & Electrical Power Readout


CHASSIS

• Drawbar/Chassis:

Hot Dipped Galvanized Tubular Steel made from RHS 4"x2", 0.15 Wall Thickness, 0.24" Supporting Plates for extra Strength & Durability.

• Independent Suspension:
Control Arm with Dual Shock Absorbers and Coil Springs
• Tires:

265x75xR16 Off-Road Tires with Two Spare Tires

• Wheels:

16" Alloy Wheels with a Black Powder Coated Finish

• Brakes:

12" Electric Tow Brake with Mechanical Handbrake

Breakaway System Include 2x Safety Chains

• Connector:
7 Pin Flat Plug
• Anderson Plug:
50Amp Anderson Plug
• Hitch:
Black Series Camper, Inc. ADR Approved Off-Road Poly Block Hitch
• Jockey Wheel:
Off-Road Swing Away 10" Jockey Wheel with length 410mm
• Recovery Hooks:
2x Rear Facing Recovery Shackles


MEASUREMENTS

• Pop Top:

+1.6ft

• Internal Height:
7ft(open)  5.4ft(Close)
• Internal Length:
12ft
• External Height:
9.6ft(Open)  8ft(Closed)
• External Length:
19ft
• External Width:
7.55ft
• Dry Weight:
5,080lbs
• Tongue Weight:
608lbs
• GVWR:
6000lbs


plan view of HQ12 - Black Series Campers | Off-Road Travel Trailers, Toy Haulers & Camper Trailers

*plan view shows standard and optional features
