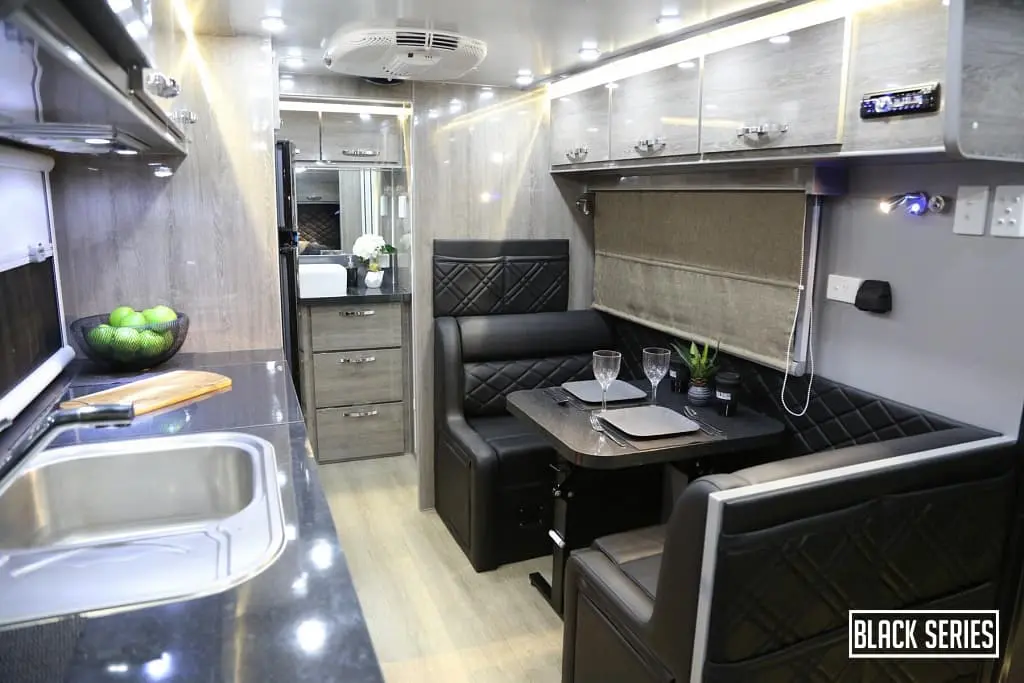

INTERIOR

Sleeping Configuration: 1×Queen Bed and Convertible Lounge
En-suite   Bathroom: Seperate private Bathroom and Shower with Vanity and Laundry
Lounge: Dinette with Premium Faux  Leather Seating and Adjustable Table.
Convertible to sleeper
Kitchen: Propane Stove, Sink, Microwave, and Fridge
Flooring: Wood Vinyl
Cabinetry: Modern 5-Star Timber Finish  Veneer
All cabinetry comes equipped with gas strut supports with push open travel-safelocks and soft close drawers
Leather: Premium Leather with a 5-Star Finish
Screen Door: Tri-Lock Security Door with locking Fly Screen


EXTERIOR


APPLIANCES/
ACCESSORIES

Fridge:6 cu. ft. Fridge/Freezer
Stove: Outdoor and Indoor Propane Stove
Rangehood: Slim Twin Fan with Light Range Hood
Propane:2× 20lbs Propane Tanks
Microwave:6 Gal. Electrical Microwave with Four Operating Features
Furnace: 16,000 BTU Thermostat Control
Air Conditioning: 13,500 BTU Rooftop Air Conditioning Unit
Entertainment   System:CD/FM/IPOD/Bluetooth/USB   Radio
2× Interior Speakers
2× Outdoor Marine Grade Speakers
24" TV with DVD Function
Antenna: HD TV over the air antenna with built in sure-lock
Safety: Fire Extinguisher, Smoke Alarm and Propane/CO Detector


PLUMBING

Shower: Outdoor Shower & Interior Full Fiberglass Shower
Sink: Large Interior Stainless Steel Sink and Outdoor Stainless Steel Drip Sink
Toilet: Porcelain Toilet
Water Tanks:
Drinking   Water: 11.88 Gal. Triple Filtered System
Fresh   Water: 63.4 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Grey   Water: 26.42 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Black   Water: 26.42 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Hot   Water: Hot Water System


ELECTRICAL

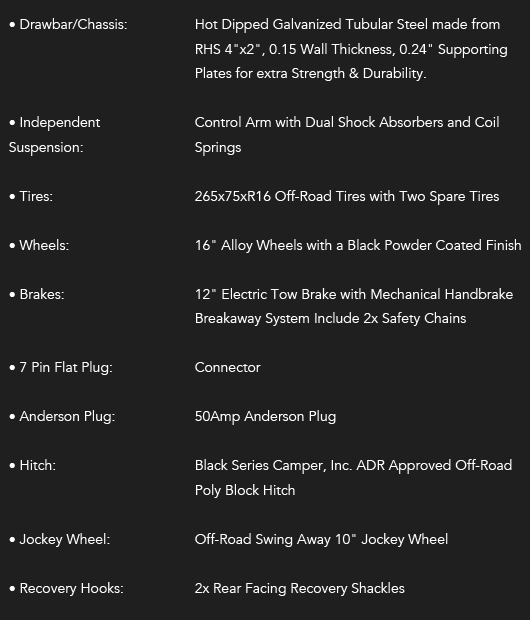

CHASSIS

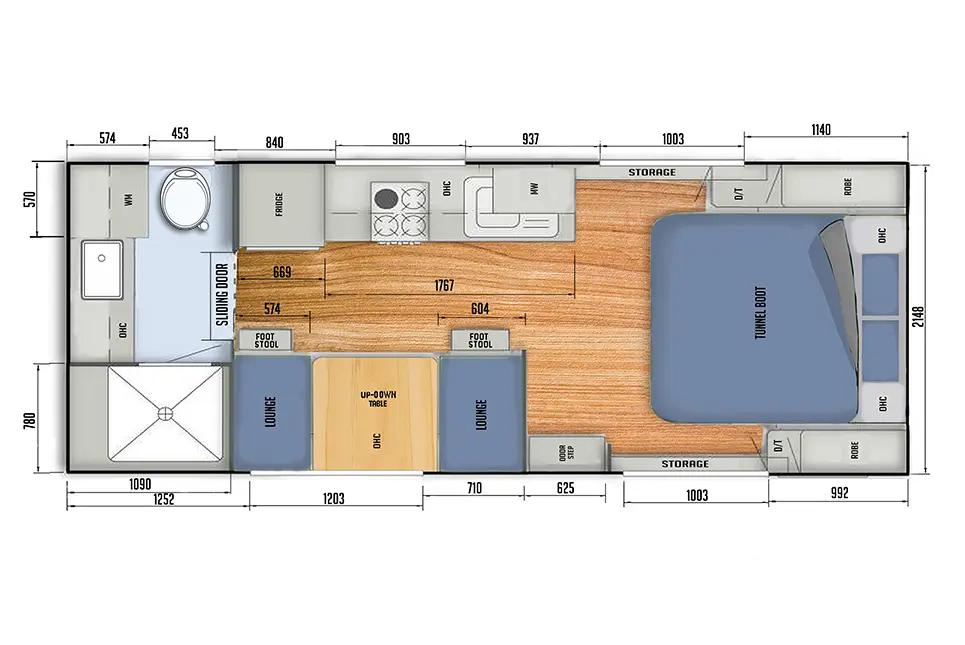

MEASUREMENTS

Internal Height: 6.3ft
Internal Length: 19ft
External Height: 10.2ft
External Length: 26.2ft
External Width: 7.5ft
Dry Weight:6733lbs
Tongue Weight:1000lbs
GVWR:10000lbs


INTERIOR


EXTERIOR


APPLIANCES/
ACCESSORIES


PLUMBING

Shower:Outdoor Shower & Interior Full Fiberglass Shower
Sink:Large Interior Stainless Steel Sink and Outdoor Stainless Steel Drip Sink
Toilet:Porcelain Toilet
Water Tanks:
Drinking Water:11.88 Gal. Triple Filtered System
Fresh Water:52.8 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Grey Water:26.42 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Black Water:26.42 Gal. Polyurethane Water Tank with 0.12" Aluminum Bash Cover
Hot Water:Hot Water System


ELECTRICAL


CHASSIS


MEASUREMENTS
